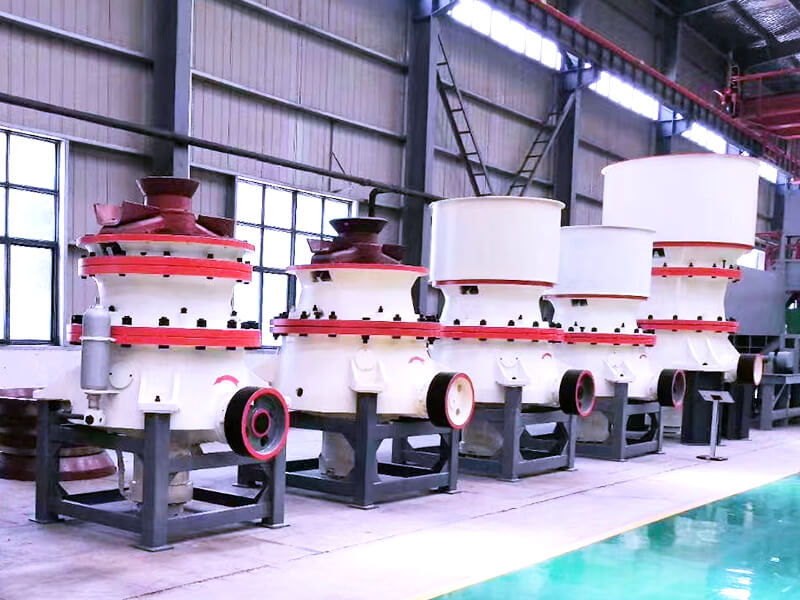

Single Cylinder Cone Crusher

Some Basic Information of Single-cylinder Cone Crusher

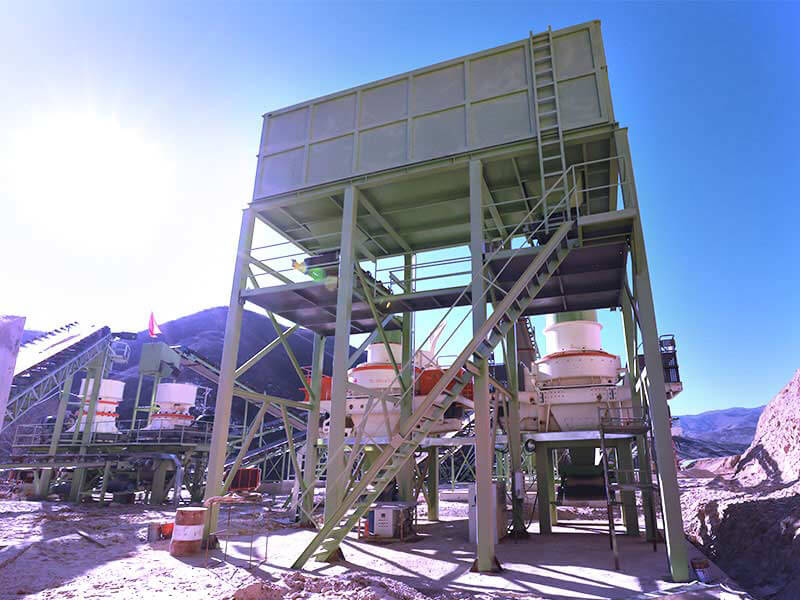

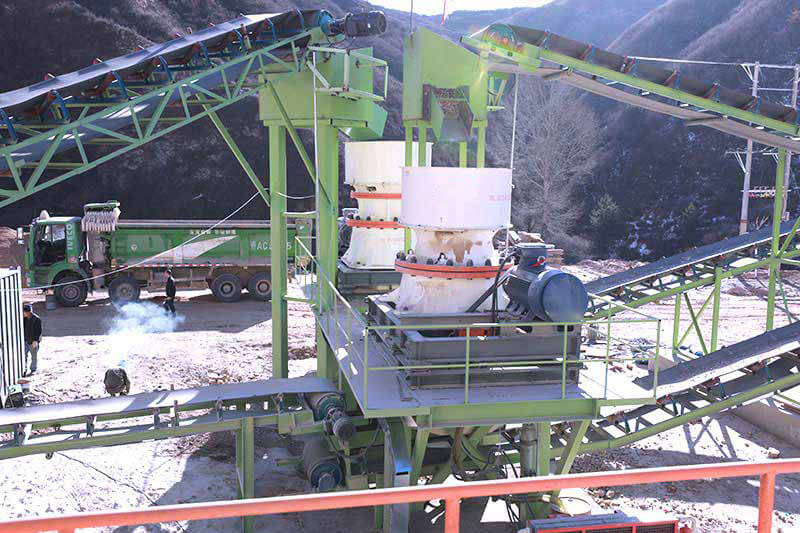

single cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium,construction,water and electricity,transportation,chemistry and building material industry.Especially in the metal ore and construction of sand and gravel material is the most widely used.

The Main Features of Single-cylinder Cone Crusher

1.stable performance and Less failure

2.Compact structure and easy maintenance

3.Overload protection and good bearing lubrication

4.High efficiency,35% ~ 60% higher than spring cone crusher

5.Just replacing fixed cone can achieve various cavity shapes for fine crushing

6.Good quality final material,increas the cube proportion and uniform grain,reduce flake stone needles

The Working Principle of Single-cylinder Cone Crusher

The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom.
